The Estampinox EFI pump is a stainless steel centrifugal pump ideal for the transfer of water and other low viscosity liquids. It is designed to cater for the needs of auxiliary services in the food-processing, chemical, pharmaceutical and wine-making industries.
Request information

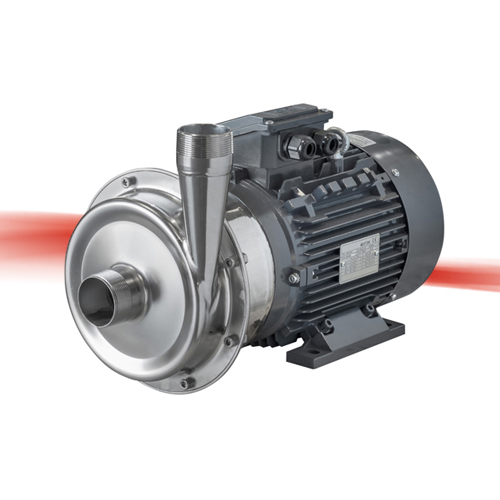

ESTAMPINOX EFI Centrifugal Pump
REQUEST INFORMATION
Design and features
Estampinox EFI is a range of close-coupled centrifugal pumps. It is made of a cold-formed stainless steel casing, open impeller manufactured with stainless steel cold-formed plate or investment casting (according to model), mechanical seal, pump cover, lantern and shaft. Estampinox EFI centrifugal pump is provided with an internal single mechanical seal.
Triphasic induction motor with B34 flange (B35 for motor frame 132), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, efficiency class according to EC regulation, IP 55 protection and F-class insulation.
3 phases, 50 Hz, 230 V Δ / 400 V Υ, ≤ 4 kW
3 phases, 50 Hz, 400 V Δ / 690 V Υ, ≥ 5,5 kW
|
|
|
|
Materials
Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM
Mechanical seal:
Rotary part Ceramic (Cer)
Stationary part Carbon (C)
Gaskets EPDM
Surface finish: Matt
Connections: Threaded connection (ISO 7)
Options

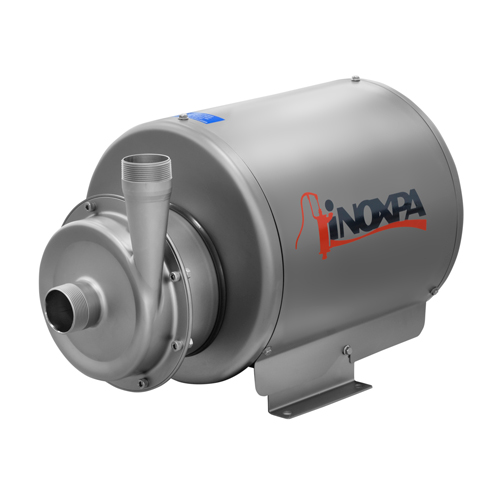

AISI 304 stainless steel motor shroud.
Other materials for mechanical seals and gaskets.
Different types of connections.
Motor with other voltages, frequencies, mechanial protections and efficiencies.
Trolley and/or control panel.
|
|
|
|
|
|
