HYGINOX SEN

Data Sheet

Instruction manual

1
Materials

Parts in contact with the product Stainless steel AISI 316L

Other steel parts Stainless steel AISI 304

Gaskets in contact with the product EPDM

Mechanical seal:

Rotary part Silicon carbide (SiC)

Stationary part Carbon (C)

Gaskets EPDM

External surface finish Bright polish

Internal surface finish Ra<0,8 μm

Connections: CLAMP

Options

Mechanical seal: C/StSt and SiC/SiC.

Gaskets: FPM and PTFE.

Drain port.

Stainless steel motor.

Trolley and/or control panel.

Nema High Efficiency motors for T.56C motors up to 2 HP.

1
Design and features
Due to its sanitary and economical design, HYGINOX SEN sanitary centrifugal pump is used as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries.

The Hyginox SEN sanitary pump is a centrifugal stainless steel pump suitable for motor assembly according to the USA NEMA stantards.

Request information

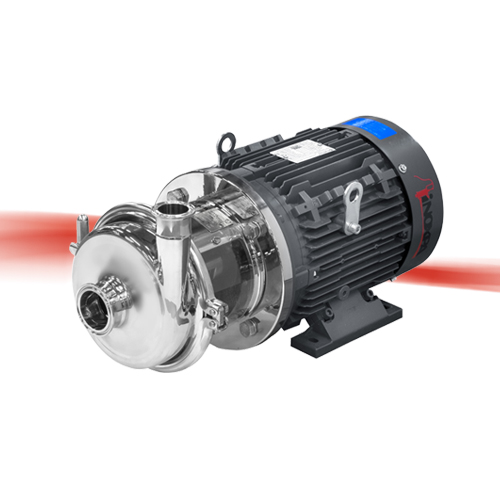

HYGINOX SEN Centrifugal Pump

Operating principle

HYGINOX SEN pump is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft.

Design and features

The Hyginox SEN sanitary centrifugal pump is provided with an internal single mechanical seal. The seal is balanced and has a hygienic design. As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, both parts of the mechanical seal can be in silicon carbide as well as the gaskets can be in FPM.
