The bottom side entry agitators are used in process and storage tanks in the applications of the food-processing industry.
The main application is agitation of low viscosity products like wine, oil, milk, beer, alcohol, etc. in large volume tanks.
Request information

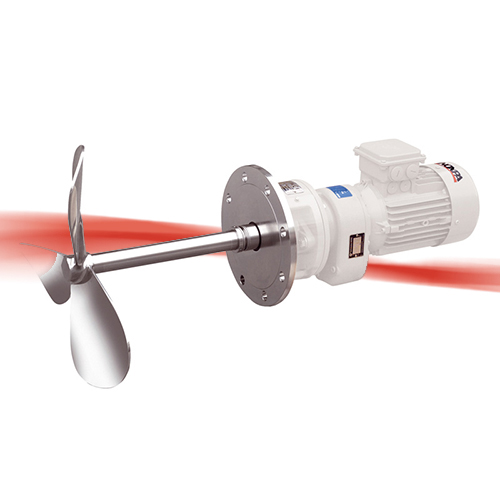

LR/LM Bottom Side Entry Agitator
REQUEST INFORMATION
Operating principle
The LR agitators are driven by geared motors and the LM agitators are provided with direct motors.
These agitators are installed in a slanted position.
The rotation of the propeller creates a flow that impells the product to the bottom of the tank and then raises up to the surface along the wall opposite to the agitator. The effect is promoted if the bottom is curved.
The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.
Design and features
Side-entry agitator.
Internal mechanical seal: EN12756 (DIN 24960 L1K).
Economical for use in large volume tanks.
Robust and sanitary design.
Easy maintenance.
The propeller fixed to the shaft by means of a threaded connection and a gasket.
Helical geared motors.
Motor: 3 ph, 230/400 V, 50 Hz, IP55, 1500 rpm.
Marine propeller (Type10).
