The range of the FMI agitators presents vertical direct motor-driven agitators. They are used in the processes of mixing, dissolution, dispersion and maintenance, whenever a powerful and high-speed agitation is required, in the food-processing, cosmetics, pharmaceutical or chemical industries. The most adequate finish is selected for every process.
The agitators are normally fitted to tanks of up to 20.000 L for work with low-viscosity products.
Request information
FMI Modular Vertical Agitator
REQUEST INFORMATION
Operating principle
The agitators are normally installed inside the tank either centrally with current deflectors, or offset so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface along the walls of the tank. The effect is promoted if the bottom of the tank is curved.
Design and features
Vertical agitator.
Sealing: V-ring.
Bearing support.
Propeller attached to the shaft by Allen studbolts, and the shaft
attached to the drive by means of a rigid coupling plate.
IEC B5 motor, 1500 rpm, IP 55, F-class insulation.
Max. power 75 kW.

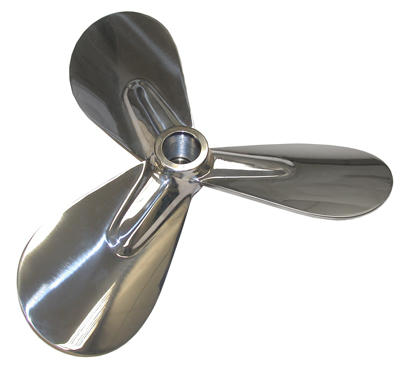

Marine propeller (Type 10).
