he blenders are used to mix solids in liquids.
In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.
They can also be a solution to preparing solid-liquid mixtures in the pharmaceutical, cosmetics and chemical industries.
Request information

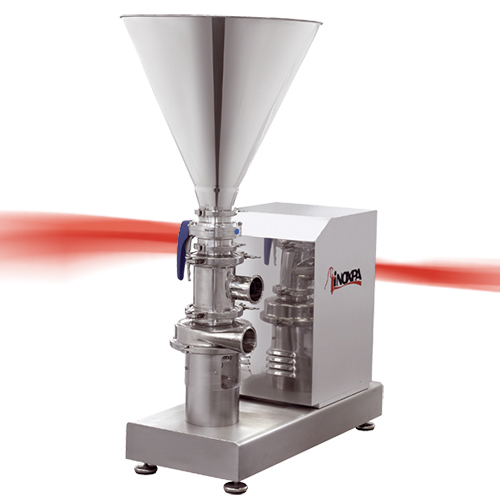

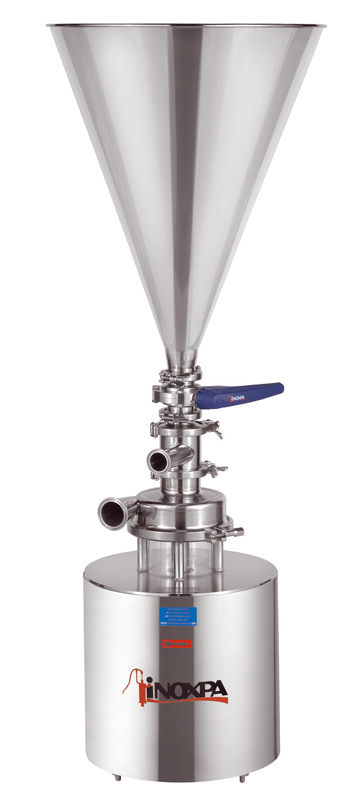

M-226 / M-440 Blender
REQUEST INFORMATION
Operating principle

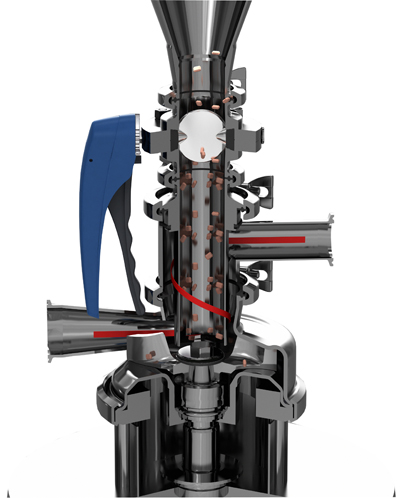

The blender basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side has a double-wall pipe that keeps the inlet of solids separate from that of liquids, thus avoiding the formation of lumps before the material enters the casing.
The liquid enters the mixing chamber at a high speed, thereby creating a vacuum at the center of the impeller, which causes the suction of the solids. The fall of the solids can be regulated by means of a valve situated at the bottom of the hopper.
Design and features
Simple and versatile assembly for quick and homogeneous mixing of a great variety of solids without contact with the air.
Complete mixing with recirculation of the material.
In some applications, it can be used in line, without recirculation.
Sanitary design.
Easy assembly and disassembly by Clamp connections.
Cleaning can be carried out without disassembling the unit.
Sanitary single mechanical seal.
Standard hopper of 40º for M-226 and 50º for M-440.
