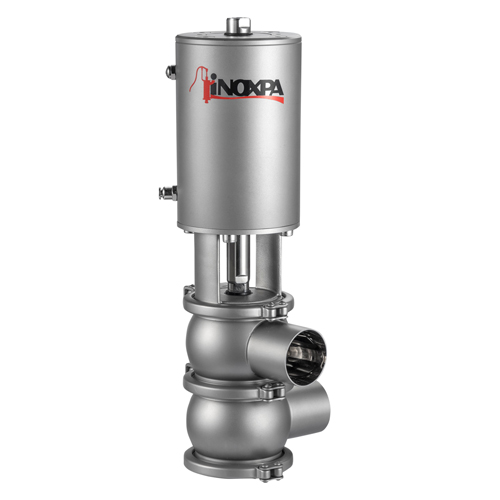

The INNOVA M-type valve is a pneumatic shut-off seat valve for hygienic applications. The valve is designed for the direction of product flow from the upper to the lower body. To avoid the effect of water hammer, the valve closes against the flow.

Request information

INNOVA M Shut-off Single Seat Valve

REQUEST INFORMATION

Design and features

Gasket with specific profile guarantees reliability under adverse working conditions.

Hygienic design of the gasket ensures optimal cleaning.

Single-acting pneumatic actuator.

Normally closed valve (NC).

The valve can be changed to normally open (NO) by simply reversing the position of the pneumatic actuator.

Easy assembly/disassembly of internal parts by loosening a clamp fastener.

Open lantern allows visual inspection of shaft sealing.

360º adjustable body.

Materials

Parts in contact witht the product AISI 316L (1.4404)

Other stainless steel parts AISI 304 (1.4301)

Gasket EPDM according to FDA 177.2600

Surface finish:

Internal Bright polish Ra ≤ 0,8 μm

External Matt

Available sizes:

DIN 11850 DN 25 - DN 100

ASME BPE OD 1" - OD 4"

Connections: Weld

Options

Double-acting pneumatic actuator.

Gaskets: FPM, HNBR.

Other connection types.

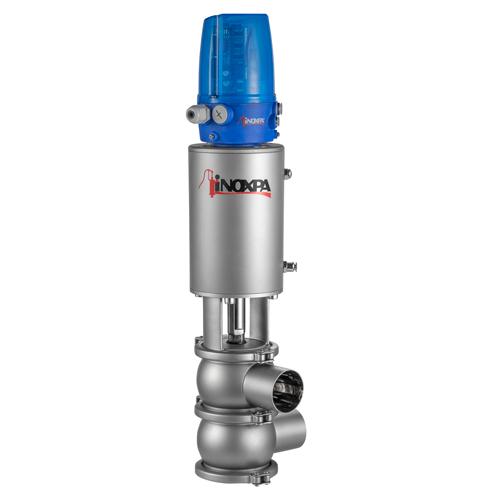

Control unit: C-TOP and C-TOP+.

External position sensors.

Surface finish: Ra ≤ 0,5 μm.
