The INNOVA P-type valve is a pneumatic shut-off double seat valve for hygienic applications. The leackage chamber, under atmospheric pressure, situated between the two seats ensures a safe interface between the two liquids, one of which is usually a CIP solution (cleaning agent).
The leakage chamber can be cleaned by independent lifting of the seats during the CIP cleaning of the line.
Request information

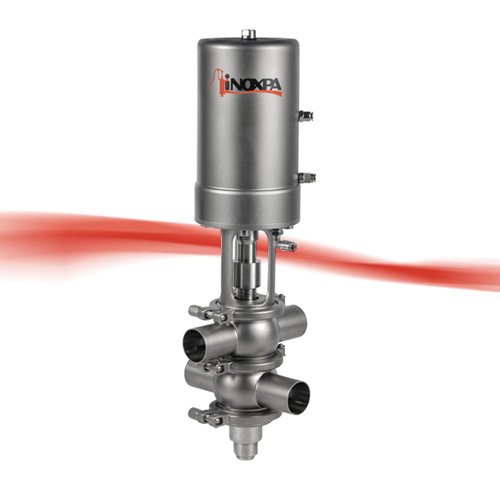

INNOVA P Shut-off Double Seat Valve
REQUEST INFORMATION
Design and features
Hygienic design according to EHEDG.
No leakage during the opening/closing of the valve.
Balanced lower seat.
Single-acting pneumatic actuator.
Easy assembly/disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.
360º adjustable body.
|
|
|
|
Materials
Parts in contact witht the product Stainless steel AISI 316L (1.4404)
Other stainless steel parts Stainless steel AISI 304 (1.4301)
Gasket EPDM (according to FDA and EC 1935/2004)
Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt
Available sizes:
DIN 11850 DN 40 - DN 100
ASME BPE OD 1½" - OD 4"
Connections Weld
Options
Gaskets: FPM, HNBR.
Other connection types.
C-TOP+ control unit.
External position sensors.
Internal surface finish: Ra ≤ 0,5 μm.
|
|
|
|
|
|
