Sanitary butterfly valves, whether manually or automatically actuated, can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries.

Request information

4800 Butterfly Valve

REQUEST INFORMATION

Operating principle

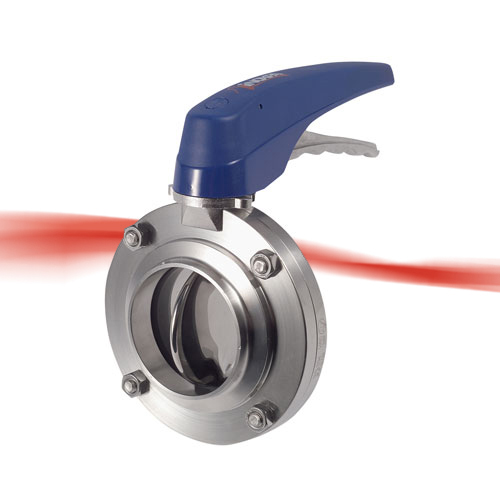

The butterfly valve can be operated automatically through an actuator or manually with a handle.

The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions.

The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.

Design and features

Compact and robust design.

Multi-position handle as standard feature for valves up to DN-100/4".

Two-position handle as standard feature for valves starting from DN-100/4".

Several models of easily interchangeable manual handles and pneumatic or electric actuators.

Low pressure losses.

Body halves interchangeable with any connection type.

Connections: DIN 11850.

Traceability of components.

Materials

Disc and body halves: AISI 316L (forged)

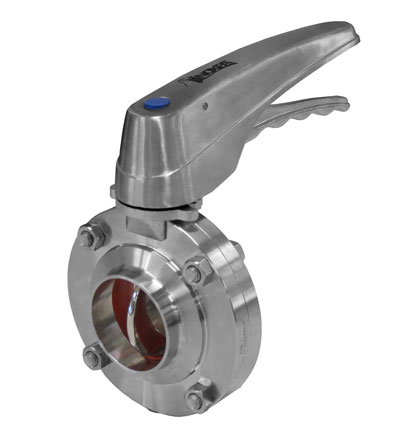

Handle: AISI 304 / PP

Other st.st. parts: AISI 304

Gasket: EPDM according to FDA 177.2600

Internal surface finish: Ra ≤ 0,8 µm

External surface finish: Machined

Options

Valve in AISI 304.

Gaskets: NBR, VMQ or FPM.

Connections: Clamp, SMS, RJT, FIL-IDF, etc.

Two sizes for multi-position handle.

Handles: two-position, lever, micrometric, with safety lock, etc.

Electric actuator or single- or double-acting actuator, the size is determined by the operating torque of the valve.

Electro-pneumatic positioner.

Inductive position sensors.

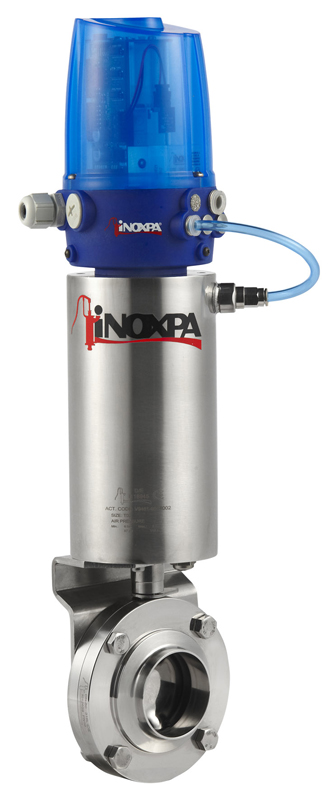

C-TOP control unit (inductive position sensors or microswitches).

ATEX version available
