Double butterfly valves can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. The LBV (Leakage Butterfly Valve) valve offers an easy and safe separatation of products and prevents accidental mixing in case of gasket failure. The most usual applications are the ones that require safe separation of the product and CIP solutions in a single point (not in manofolds), or at the end of a manifold (e.g. CIP return) or entry of a CIP solution into a tank (through a spray ball).

Request information

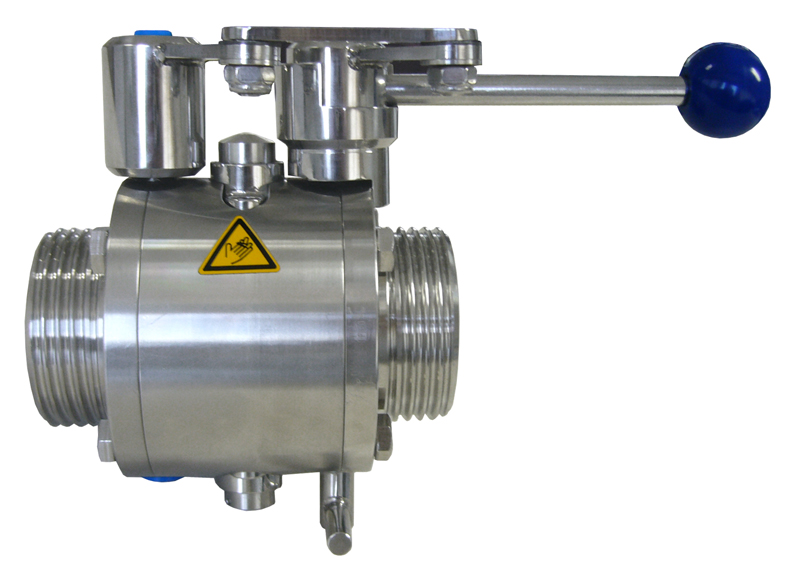

LBV Double Butterfly Valve

REQUEST INFORMATION

Operating principle

The LBV valve provides double safety: the two butterflies are simultaneously actuated by only one actuator.

When the two valves are closed, there is a chamber between them. The chamber is under atmospheric pressure as it open to the exterior, thus, in case of failure of any of the two gaskets, leakage of the liquid product will indicate any possible mixing of products. The state of the gaskets is supervised by means of either of the leakage detectors. The other detector (superior) controls the entry of the cleaning solution to prevent any kind of contamination in the chamber.

These 2 leakage detectors provide optimal protection and enable cleaning of the intermediate chamber.

Design and features

Compact and robust design.

Low pressure losses.

Interchangeable half-bodies (any connection type).

Connections:

weld DIN 11850

CLAMP DIN 32676

threaded DIN 11851

weld OD ASME BPE

CLAMP OD ASME BPE

Materials

Parts in contact with the products: AISI 316L

Other St.St. parts: AISI 304

Gasket: EPDM according to FDA 177.2600

Internal surface finish: Ra ≤ 0,8 μm

External surface finish: Machined

Options

Gaskets: NBR, VMQ or FPM.

Connections: SMS, RJT, FIL-IDF, etc.

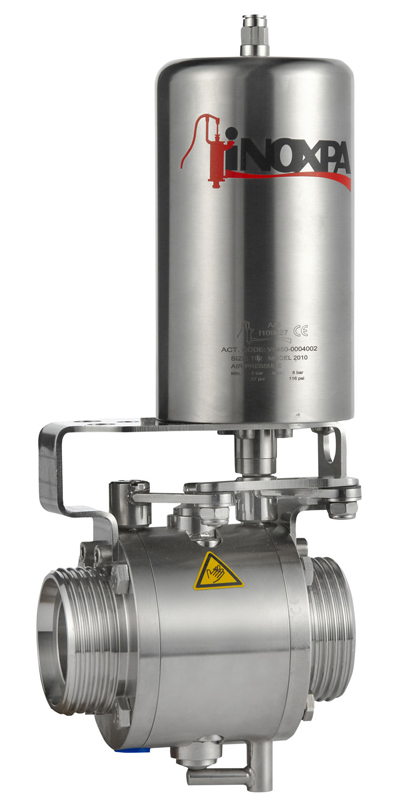

Double-acting pneumatic actuator.

Inductive position sensors.

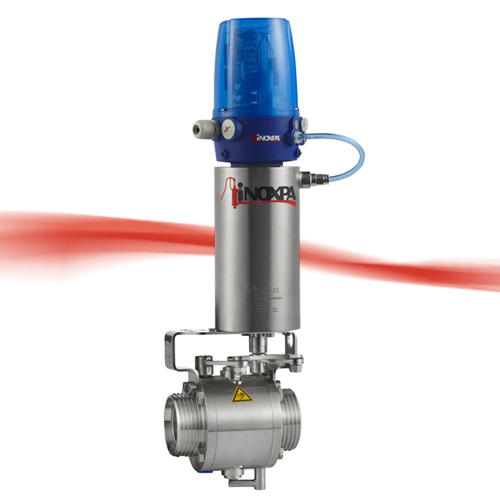

C-TOP control head (inductive position sensors or microswitches).
